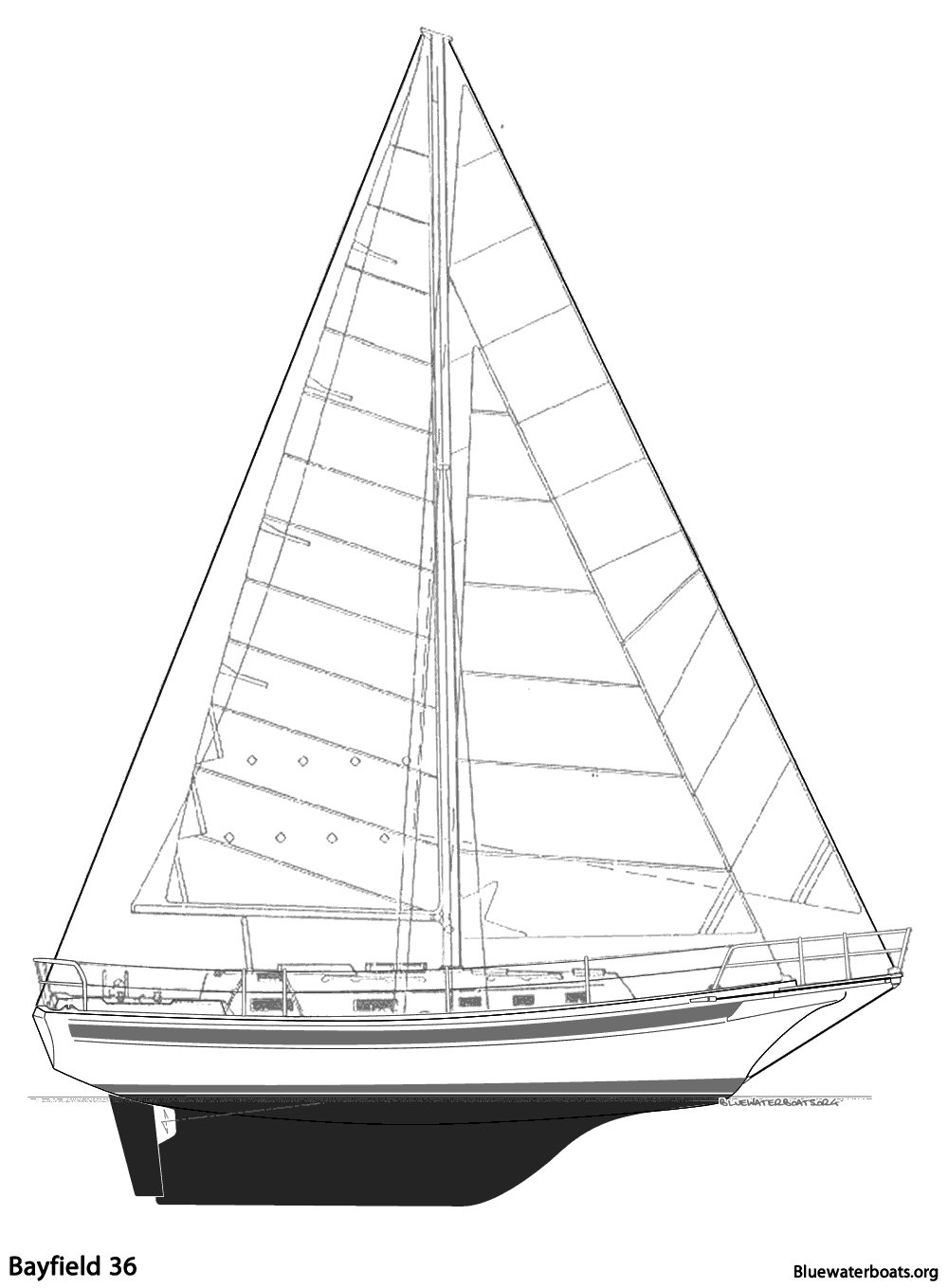

Bayfield 36

The Bayfield 36 is a Canadian built, full keeled cruiser with traditional teak styling designed by Hayden Gozzard. Production started in 1985 and ran until the factory in Clinton, Ontario burned down in 1988. She is a unique combination of new and old thinking with her clipper bow, trailboards, and teak combings combined with an aluminium toerail and beamy interior. This is a "big" 36-footer, and owners love her as much for her good looks as for her amazingly spacious accommodations. Performance-wise she will not win you any races but when in a blow you will enjoy her heavy displacement, full keeled underbody. Handholds are wherever you need them.

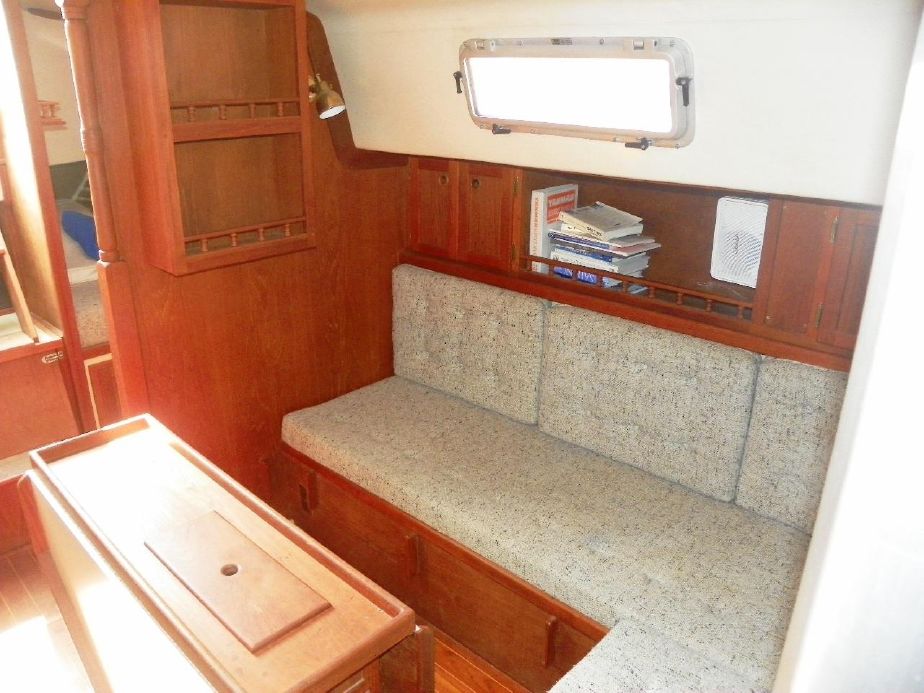

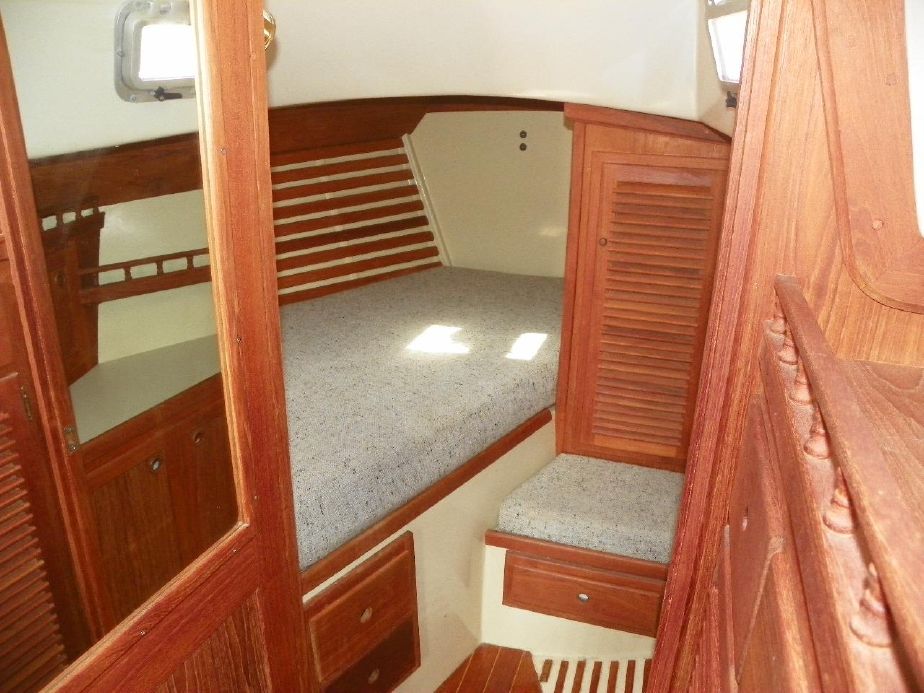

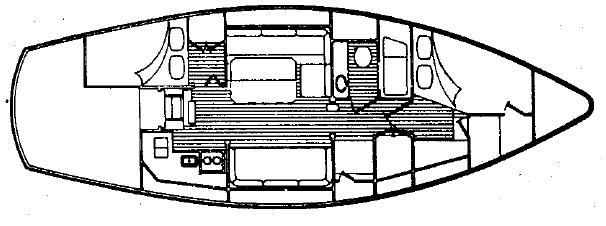

The construction is solid glass with molded inserts to create the interior substructure while the deck is balsa cored. Chainplates tie into bulkheads or special stubs tied into the hull. The mast is keel stepped while the internal ballast is 6,500 pounds of lead. The fuel tankage is aluminium with 45 gallons capacity while the water and holding tanks are plastic. Her accommodations include two cabins, a head with tub, and spacious salon. Some versions have a fixed salon table while others have a table that folds down from the main bulkhead. Here is where the Bayfield shines with the spaciousness of a much larger yacht. In fact it is mystery how they packed the proverbial 10 pounds in 1 pound sack. Her engine was a Yanmar 4 JHE 44 HP which is still in many. Access is beneath the companionway and through the starboard cockpit bench.

The aluminium fuel tank is prone to corrosion. It sits just forward the companionway inserts deep into the bilge. The original stove used butane gas which is difficult to find and refill in the USA. Originally specifications listed 4' 11" as the draft. Actual drafts are around 5' 9" due to overbuilding and cruising weight. Exterior storage is limited with no lazzarettes or anchor locker.
